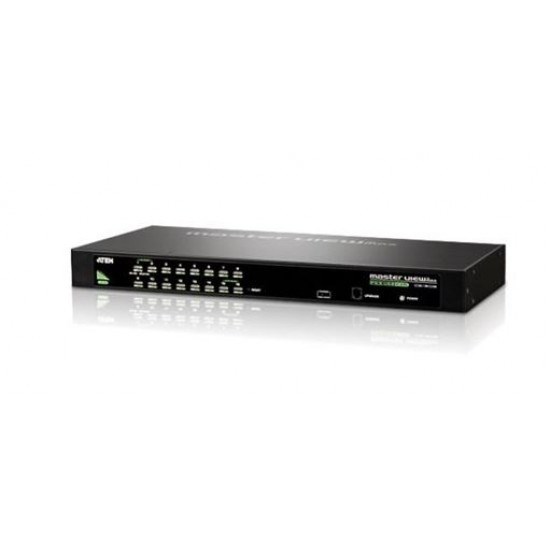

Aten CS-1316 – 16-Port PS/2 - USB KVM Switch

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.

Specifications:

• Computer Connections:
• Direct: 16
• Max.: 256 (via Cascade)
• Port Selection: OSD, Hotkeys, Pushbuttons
• Connectors:
• Console Port - Keyboard/Video/Mouse: 1 x SPHD-18 Male (Yellow)
• KVM Ports - Keyboard/Video/Mouse: 16 x SPHD-15 Female (Yellow)
• FW Upgrade: 1 x RJ-11 Female (Black)
• Power: 1 x DC Jack
• Switches:
• Port: 16 x Pushbutton
• FW Upgrade: 1 x Slide
• LEDs:
• On Line: 16 (Orange)
• Selected: 16 (Green)
• Power: 1 (Dark Green)
• Emulation - Keyboard/Mouse: PS/2, USB
• Video: 2048 x 1536; DDC2B
• Scan Interval: 1-255 Seconds
• Power Consumption: DC 5.3 V; 6.6 W
• Environment:
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties:
• Housing: Metal
• Weight: 2.10 kg
• Dimensions (LxWxH): 43.30 x 16.00 x 4.40cm
• Package Contents:
• 1 x CS1316 KVM Switch with Rack Mount Kit
• 1 x Console cable
• 1 x Firmware Upgrade cable
• 1 x Foot Pad set (4 pads)
• 1 x Power Adapter
• 1 x Mounting Kit
• 1 x User Instructions
