Details:

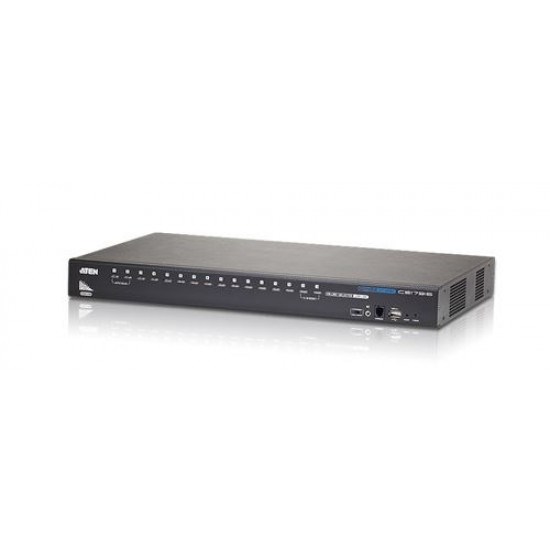

The CS-17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.

The CS-17916 can be cascaded up to two levels – to control up to 256 computers – all from a single console.

In addition the CS-17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.

Furthermore, the CS-17916 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed.

The CS-17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

Specifications:

Computer Connections

• Direct: 16
• Max: 256 via Cascade

Console Selection

• OSD, Hotkey, Pushbutton

Connectors

• Console Ports
• Keyboard: 1 x USB Type A Female
• Monitor: 1 x HDMI Female
• Mouse: 1 x USB Type A Female
• Speaker: 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel)

• KVM Ports
• Keyboard / Mouse: 16 x USB Type B Female (White)
• Monitor: 16 x HDMI Female (White)
• Speaker: 16 x Mini Stereo Jack Female (Green)

• USB 2.0 Hub: 2 x USB Type A Female (White) - 1 x front panel, 1 x rear panel

• Firmware Upgrade: 1 x RJ-11 Female (Black)

• Power: 1 x DC Jack

Switches

• Port Selection: 16 x Pushbutton
• Reset: 1 x Semi-recessed Pushbutton
• FW Upgrade: 1 x Slide

LEDs

• USB Link: 16 (Green)
• Online / Selected: 16 (Orange)
• Power: 1 (Dark Green)

Emulation

• Keyboard / Mouse: USB

Video

• up to 1080p / 1920 x 1200@60Hz

Scan Interval

• 1 – 255 Seconds (Default: 5 secs)

Power Consumption

• DC 5.0V; 12.2W

Environment

• Operating Temp: 0-50°C
• Storage Temp: -20-60°C
• Humidity: 0 - 80% RH, Non-condensing

Physical Properties

• Housing: Metal
• Weight: 3.86kg
• Dimensions: 43.72 x 26.66 x 4.40cm (L x W x H)
