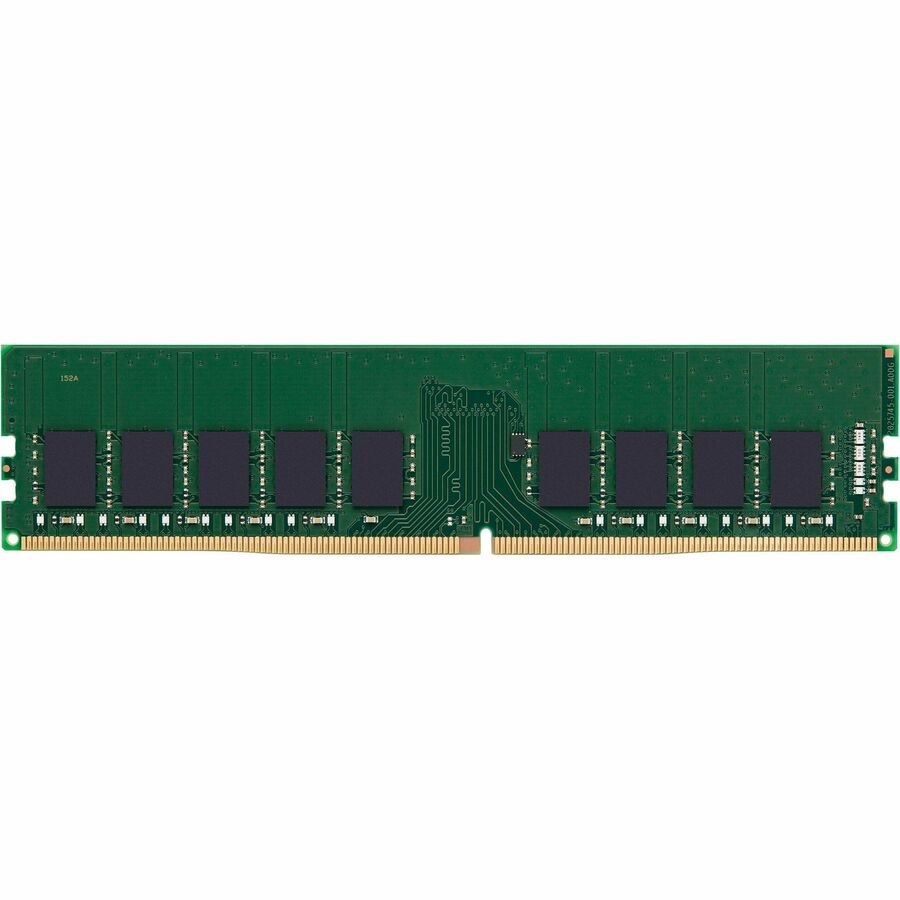

Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- General Information
- Manufacturer
- Kingston Technology Company
- Manufacturer Website Address
- http://www.kingston.com
- Brand Name
- Kingston
- Product Line
- Server Premier
- Product Type
- RAM Module
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Memory Size
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 32GB
- Memory Speed
- 3200 MHz
- Memory Data Transfer Rate
- 3.20 GT/s
- Memory Standard
- DDR4-3200/PC4-25600
- Memory Rank
- Dual-rank
- Error Checking
- ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL22
- Device Supported
- Server
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Width
- 31.3 mm
- Length
- 133.4 mm
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
